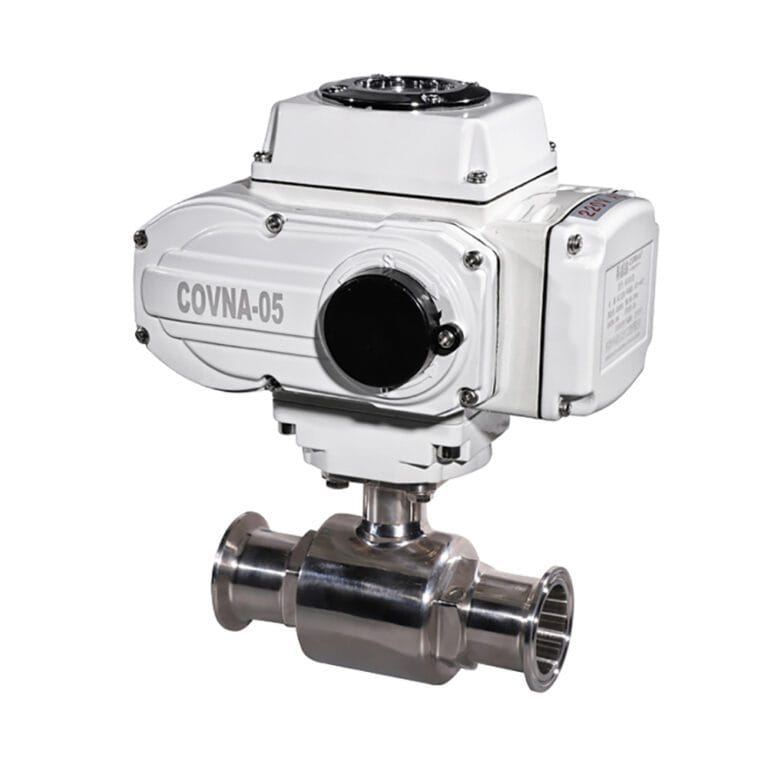

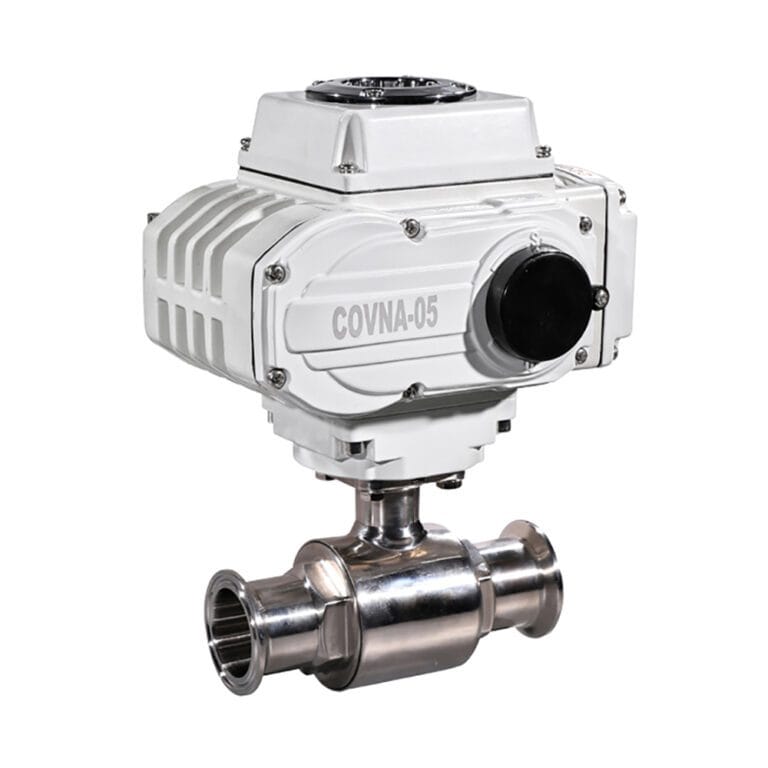

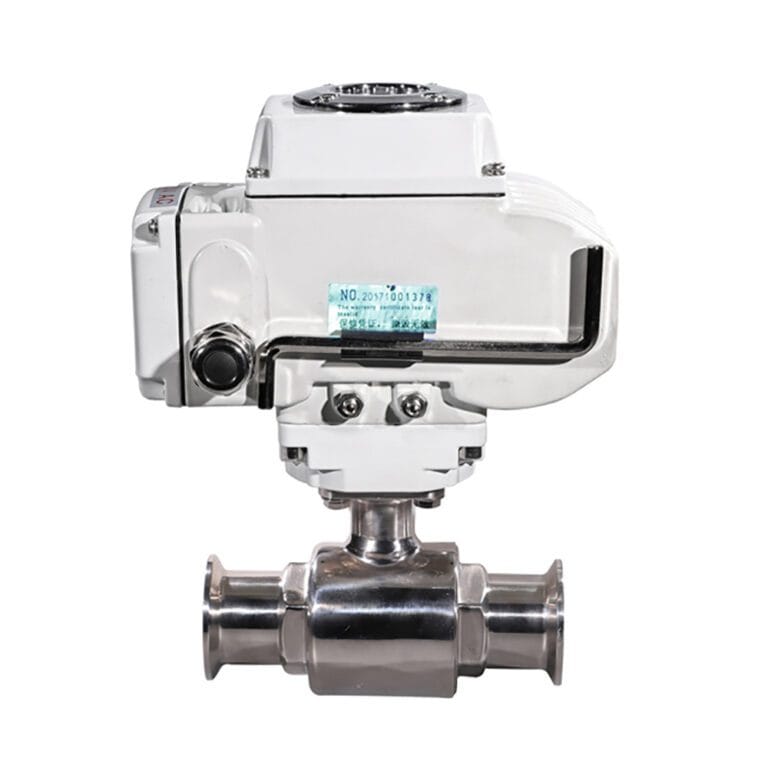

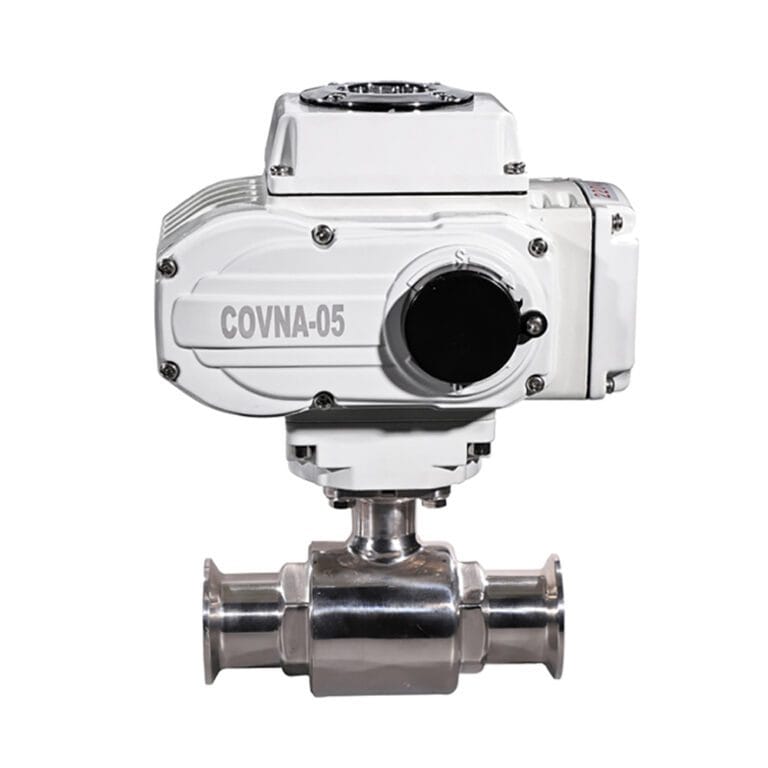

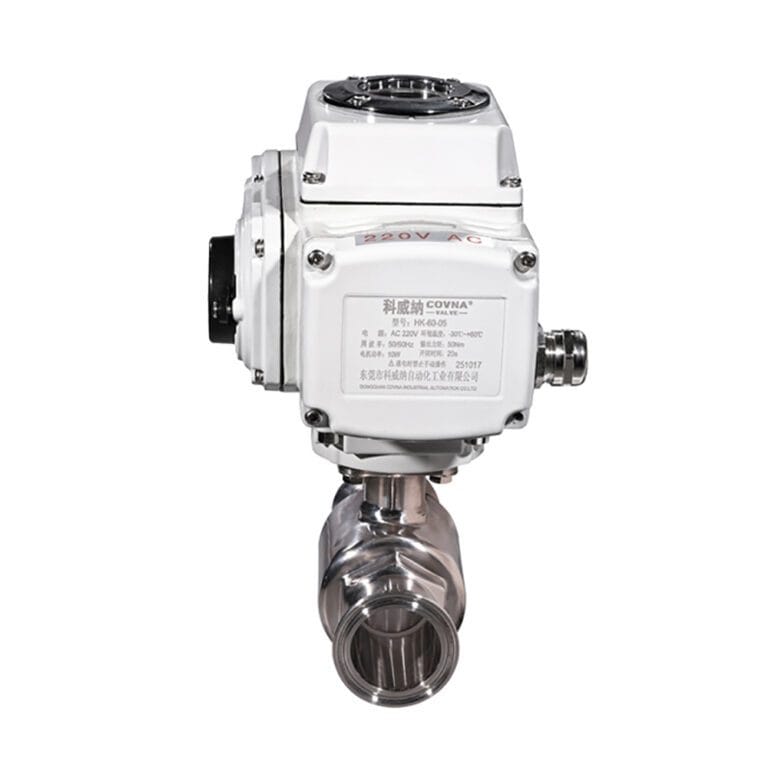

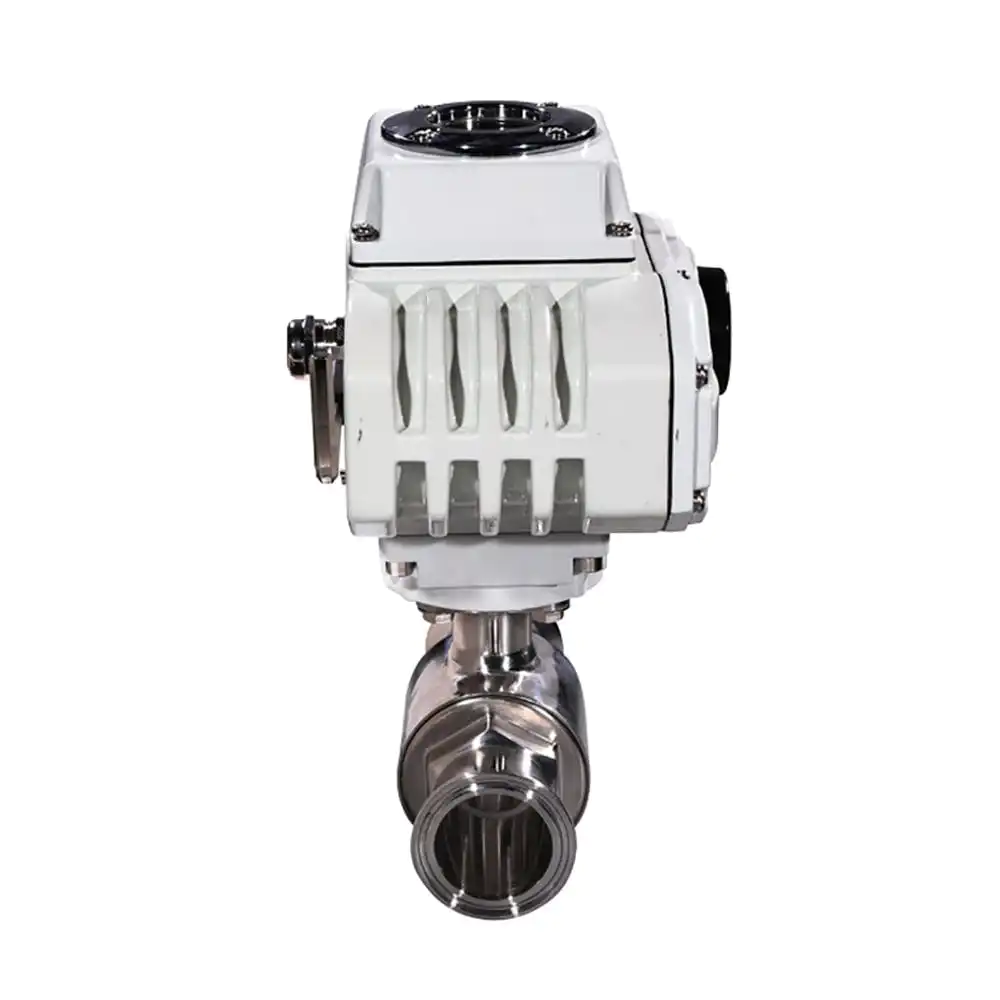

COVNA HK60-Q-W Tri-Clamp Sanitary Food Grade Electric Ball Valve

COVNA HK60-Q-W 2 way food grade electric ball valve, standard on/off control, 4-20mA or 0-10VDC modulating control is available, 304 or 316 stainless steel body construction, 220VAC standard voltage, minimum 1/2 inch tri-clamp connection, default PTFE seat, resistant to almost all fluids. Voltage:DC-12V, 24V; AC-24V, 110V, 220V, 380V.

Suitable for food, water, air, milk, pure water, etc.

It has been through the sophisticated inspection process and strict quality management.

  Model   HK60-Q-W 2-Way Sanitary Ball Valve  HK60-Q-WT 3-Way Sanitary Ball Valve
  Torque Range   50Nm to 4000Nm
  Size Range   19mm to 102mm
  Pressure   16bar
  Temperature   -10℃ to 180℃ (14℉ to 356℉)
  Voltage   DC-12V, 24V;  AC-24V, 110V, 220V, 380V
  Medium   Milk, Soft Drink, Water and Other Medium

Contact Us

COVNA Tri-Clamp Food Grade Sanitary Electric Ball Valve

● Features: Compact Design, Eco-friendly, Easy Installation, etc
● Torque: 50N.m or 4000N.m
● Rotation: Quarter-turn
● Actuator Type: ON OFF Type, Regulating Type and Intelligent Type
● Material: Stainless Steel and Plastic
● Connection: Thread, Flange, Tri Clamp and Welding
● Valve Type: 2 Ways or 3 Ways(T Port or L Port)
● Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
● Tolerance: ±10%
● Suitable Medium: Water, Oil, Air, Gas, etc

Technical Parameters of Valve Actuator

  ON/OFF Type   Feedback: the active contact signal, passive contact signal, resistance, 4-20mA
  Regulation Type   Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
  Field operation   The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus
  Voltage Optional   AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized
  Protection Class   IP65, Explosion Proof Construction Are Available: EX ll BT4

Technical Parameters of Valve Body

  Size Range   DN15-100   Medium   Air, water, steam, oil, liquid, etc
  Core Materal   Stainless Steel   Structure   3 Way T Type / L Type
  Body Material   Stainless Steel   End Connection   Tri-clamp, Butt Welded
  Voltage   DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz   Voltage Tolerance   ±10%
  Working Pressure   1.0 / 1.6MPa (10 / 16 bar)   Temperature Of Media   -30~180℃ (-22℉~356℉)

sdfsdf
sdfsdf sdfsdf sdfsdf
sdfsdf

sdfsdf
Technical Parameter of Valve Body:

  Nominal Size   DN15-DN200   Body Material   PVC, UPV, CPVC, PVDF and PPH
  End Connection   True Union, Double Union Thread   Structure   T Port / L Port
  Operating Pressure   1.0 / 1.6 MPa (10 / 16 bar)   Voltage Tolerance   ±10%
  Suitable Media   Corrosive media, Water, Air, etc   Temperature Of Media   -5~80℃ (23℉~176℉)
  Design standard   ISO, DIN, IDF, SMS, 3A   Orifice(mm)  15, 20, 25, 32, 40, 50, 65, 80, 100

sdfsdf

Package & Shipping:
As a professional electric ball valve manufacturer, COVNA aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service with omprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.
sdfsdf

Company Profile:
sdfsdf
sdfsdf

Factory Profile:
sdfsdf

Company Certificates:
sdfsdf

Purchase Guide:

  • Confirm the valve size you need. We offer this electrically actuated sanitary ball valve in 19mm to 102mm
  • Confirm the valve body material you need. We offer this electrically actuated sanitary ball valve in stainless steel 304, ss316 and ss316L material
  • Confirm the pressure and working temperature. Pressure and temperature are the important points and those may affect the cost
  • Confirm the voltage you need. The right voltage could help your valve operate better
  • Tell us your medium. Different medium has different features and we will help you to select the valve basic on the medium requirements
  • Confirm the actuator type you need. We have on/off type, modulating type, intelligent type, explosion-proof type, IP68 type and auto return type electric valve actuator for your project and meet your actuation needs
  • Any requirements please tell us like core material, sealing material, or connection standard. We could help you to custom the valve you need

More infomation, please send message to us. Quote will be provided within 2 hours! [email protected]

Technical Parameter of Actuators:
sdfsdf

  Model   5   10   16   30   60   125   250   400
  Torque Output   50Nm   100Nm   160Nm   300Nm   600Nm   1250Nm   2500Nm   4000Nm
  90°Cycle Time   20s/60s   15s/30s/60s   15s/30s   15s/30s   30s/60s   100s   100s   100s
  Angle of Rotation   0-90°   0-90°   0-90°   0-90°   0-90°   0-90°   0-90°   0-90°
  Working Current   0.25A   0.48A   0.68A   0.8A   1.2A   2A   2A   2.7A
  Starting Current   0.25A   0.48A   0.72A   0.86A   1.38A   2.3A   2.3A   3A
  Drive Motor   10W/F   25W/F   30W/F   40W/F   90W/F   100W/F   120W/F   140W/F
  Product Weight   3kg   5kg   5.5kg   8kg   8.5kg   15kg   15.5kg   16kg
  Voltage Option   AC 110V, AC 220V, AC 380V, DC 12V, DC 24V
  Insulation Resistance   DC24V:100MΩ/250V; AC110/220V/380V: 100MΩ/500V
  Withstand Voltage   DC24V:500V; AC110/220V:1500V; AC380V:1800V 1Minute
  Protection Class   IP65
  Installation Angle   Any
  Electrical Connection   G1/2 Water-proof Gable Connectors, Electric Power Wire, Signal Wire
  Ambient Temp.   -30℃to 60℃
  Control Circuit
   A: ON/OFF type with light indicator signal feedback
  B: ON/OFF type with passive contact signal feedback
  C: ON/OFF type with resistance potentiometer signal feedback
  D: ON/OFF type with resistance potentiometer and neutral position signal feedback
  E: Regulation type with servo control module
  F: DC24V/DC12V dirct ON/OFF type
  G: AC380V three-phase power supply with passive signal feedback
  H: AC380V three-phase power supply with resistance potentiometer signal feedback
Optional Function   Over Torque protectors, dehumidify heater, stainless steel coupling & yoke
The actuator on my automated valve operates, but the valve won’t turn. Why?

Most likely the valve stem or actuator coupling is broken.

The electric actuator limit switches or the pneumatic actuator position stops are not correctly adjusted.

Probably because there is no air pressure to the solenoid or dirt has jammed it. Also, debris might be trapped inside the valve. Or, the air pressure is not sufficient to operate the actuator. Remember: measure air pressure at the actuator, not at the compressor.

Maybe. First, be sure that the actuator torque output is sufficient to turn the valve reliably. Second, you will have to fabricate a custom mounting bracket and coupling to connect the actuator to the valve.

The valve will stop somewhere between full open and close. When power is reapplied to the original circuit, the actuator will complete the cycle.

To make the change just remove the actuator from the valve and turn it, or the valve stem, 90 degrees and remount the actuator.

Remove the actuator from the valve and check the valve stem. Most ball valves have stem flats at right angles to the flow when the valve is in the off position. On butterfly valves check the stem flow arrow marking.

Remove the actuator from the valve and check the valve stem. Most ball valves have stem flats at right angles to the flow when the valve is in the off position. On butterfly valves check the stem flow arrow marking.

Check the electric wiring schematic that came with the actuator for the correct hookup. Sometimes a copy is inside the actuator cover. If it is missing, don’t guess about the connections. Call the manufacturer for a schematic.

The actuator is wired incorrectly (check the schematic accompanying the actuator), or the external control switch is not the correct type for the actuator.

Not unless you bought it with an optional speed control.

Actuators and solenoid valves require different types of electrical control switches. SPDT for actuators, SPST for solenoids. Check the actuator wiring schematic for the correct wiring and switch type.

Still have confused? Contact Us!
