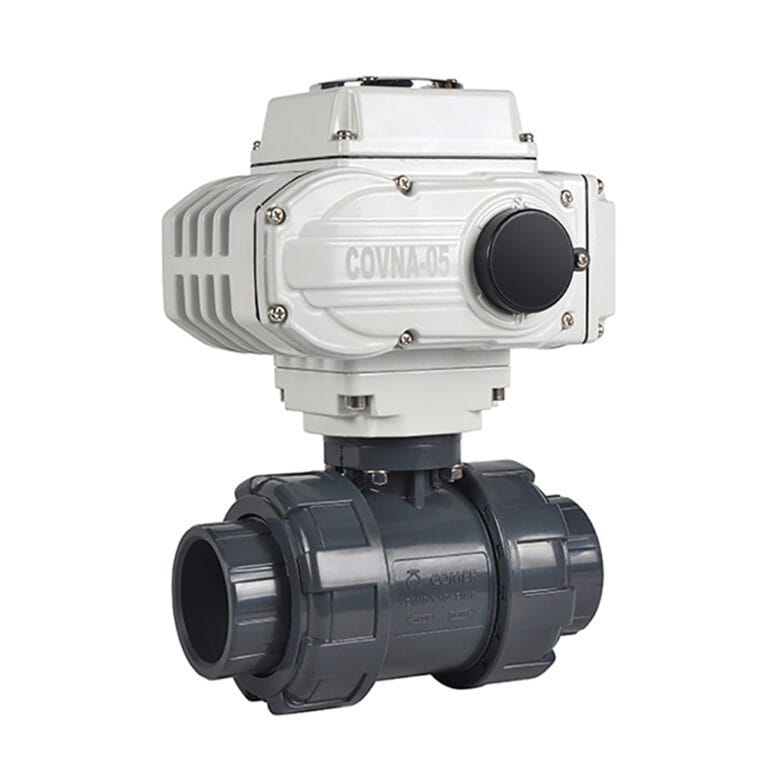

COVNA HK60-Q-P 2 Way True Union PVC Electric Ball Valve

True Union PVC, UPVC, CPVC Electric Ball Valve applied In Water Treatment, Paper & Pulp, Wastewater Treatment, etc. No MOQ required. Available In 2 Way And 3 Way Electric Ball Valve For Choice.

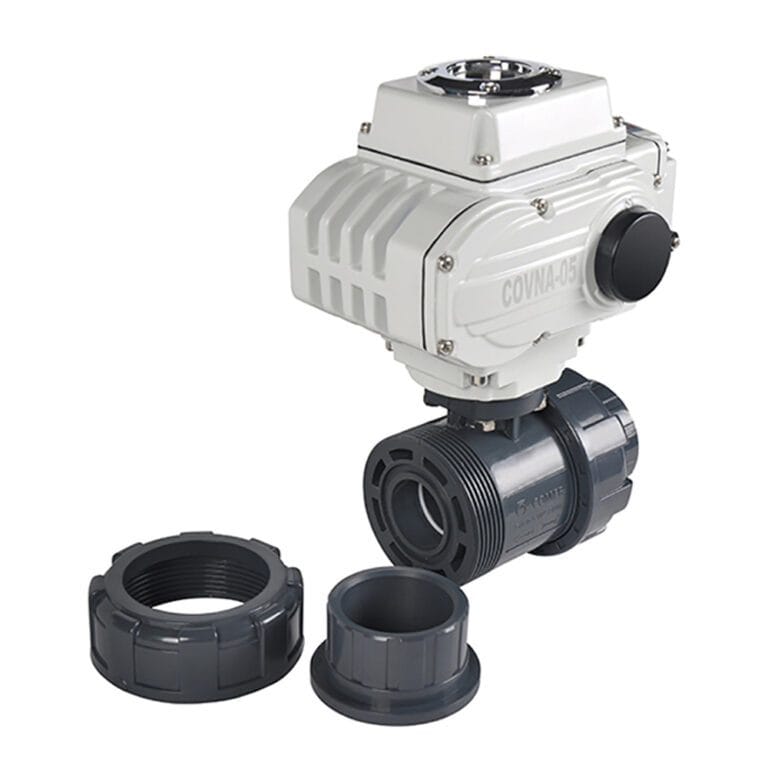

Quick Connection and Thread Connection Are Available.
Low Cost, High Flows, Anti-Corrosive & Food Safe.

  Model
  HK60-Q-P 2 Way Electric UPVC Ball Valve
  Torque Range   50Nm to 4000Nm
  Size Range   1/2in to 4in (1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2.5″, 3″, 4″)
  Pressure   10bar
  Temperature   -10℃ to 80℃ (14℉ to 176℉)
  Voltage
  DC-12V, 24V;
AC-24V, 110V, 220V, 380V
  Medium   Water, Wastewater, Seawater, Air and other medium

Contact Us

Benefits Of Electric PVC Ball Valves:
If you are looking for a ball valve that can provide you with a cost-effective fluid control solution, then the electric PVC ball valve will be your first choice. The advantages of Electric PVC ball valves are low cost, lightweight, ultra low torque, preservative, easy operation, and convenient installation and disassembly. Plastic ball valves are suitable for industries at normal temperature and pressure, such as water treatment systems, RO equipment and so on. Moreover,supplementary platform embedded copper nut products convenient automatic actuator. By receiving or feeding back signals from the electric actuator, you can remotely control the valve opening or closing, helping you improve production efficiency.

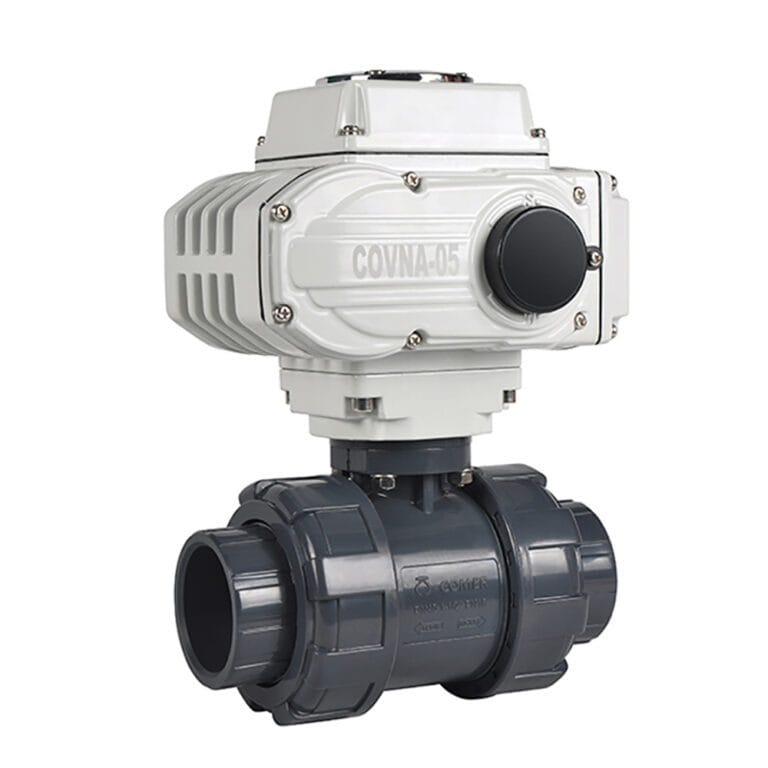

COVNA HK60-Q-P 2 Way True Union Electric UPVC Ball Valve
● Made by UPVC material with features of low cost, lightweight, anti-corrosive & food safe
● 3 options valve actuator for choice to help your automation easier and meet your actuation needs. Including on/off type,modulating type, intelligent type, explosion-proof type, IP68 type and auto return type valve actuators.
● Manual override is available. It could allow you to open or close the valve manually and keep your project safe when the power off.
● Also available in PPH, CPVC and PVDF material for you.
● 2-way ball valve and 3-way ball valve are available.
sdfsdf sdfsdf sdfsdf
sdfsdf sdfsdf sdfsdf
● Also available in CPVC, PVDF and PPH material for you:
sdfsdf sdfsdf sdfsdf

Dimension Of Electric PVC Ball Valve:

sdfsdfsdfsdf
sdfsdfsdfsdf

Technical Parameters of Valve Actuator :

  On/Off Type    90 degree rotation. Feedback: The Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA
  Modulating Type   Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.

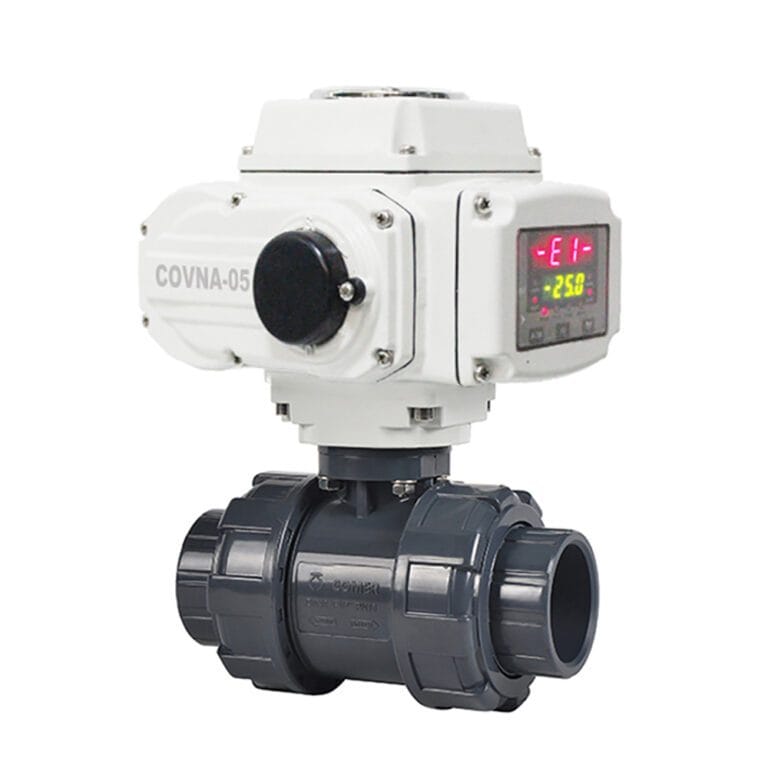

  Intelligent Type    Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power
supply,signal control and manual override. High torque up to 4000Nm.
  Field Operation   The Field, Remote Control Switch Regulation And MODBUS, PROFIBUS Field Bus
  Voltage Optional   AC-110V, 220V, 380V, DC-12V, 24V, Special Voltage Can Be Customized
  Protection Class   IP65; Explosion Proof Construction Are Available: EX d II BT4

sdfsdf

sdfsdf
Technical Parameters of Valve Body:

  Model   HK60-Q-P   Voltage   24V/12V DC; 110V/220V AC
  MOQ    1 Set   Actuator Type   On Off/ Modulating Control
  Applicable Standard   GB, ANSI, JIS, DIN   No. of Ways   2 Way
  Port Size   DN08~DN100   End Connection   True union
  Operating Pressure   1000 WOG   Media   Water, Air, Gas, Acid base crossoive media
  Body Material    Plastic PVC   Temp. of Media   -10°C to 180°C
  Valve Ball   Stainless Steel   Certification   ISO 9001, CE, TUV, SGS
  Sealing Material   EODM   Warranty   1 Year (12 Months)



sdfsdf
Technical Parameter of Valve Body:

  Nominal Size   DN15-DN200   Body Material   PVC, UPV, CPVC, PVDF and PPH
  End Connection   True Union, Double Union Thread   Structure   T Port / L Port
  Operating Pressure   1.0 / 1.6 MPa (10 / 16 bar)   Voltage Tolerance   ±10%
  Suitable Media   Corrosive media, Water, Air, etc   Temperature Of Media   -5~80℃ (23℉~176℉)
  Design standard   ISO, DIN, IDF, SMS, 3A   Orifice(mm)  15, 20, 25, 32, 40, 50, 65, 80, 100

sdfsdf

Package & Shipping:
As a professional electric ball valve manufacturer, COVNA aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service with omprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.
sdfsdf

Company Profile:
sdfsdf
sdfsdf

Factory Profile:
sdfsdf

Company Certificates:
sdfsdf

Purchase Guide:

● Confirm the valve size you need. We offer this motorized PVC ball valve in 1/2in to 4in.

● Confirm the valve body material you need. We offer this motorized PVC ball valve in UPVC, CPVC, PPH and PVDF material.

● Confirm the connection standard. We offer this motorized PVC ball valve in ANSI, JIS, DIN, and UK standard.

● Confirm the pressure and working temperature. Pressure and temperature are the important points and those may affect the cost.

● Confirm the voltage you need. The right voltage could help your valve operate better.

● Tell us your medium. Different medium has different features and we will help you to select the valve basic on the medium requirements

● Confirm the actuator type you need. We have on/off type, modulating type, intelligent type, explosion-proof type, IP68 type and auto return type electric valve actuator for your project.

Any requirements please tell us like core material, sealing material, or connection standard. We could help you to custom the valve you need.

More infomation, please send message to us. Quote will be provided within 2 hours! [email protected]

Technical Parameter of Actuators:
sdfsdf

  Model   5   10   16   30   60   125   250   400
  Torque Output   50Nm   100Nm   160Nm   300Nm   600Nm   1250Nm   2500Nm   4000Nm
  90°Cycle Time   20s/60s   15s/30s/60s   15s/30s   15s/30s   30s/60s   100s   100s   100s
  Angle of Rotation   0-90°   0-90°   0-90°   0-90°   0-90°   0-90°   0-90°   0-90°
  Working Current   0.25A   0.48A   0.68A   0.8A   1.2A   2A   2A   2.7A
  Starting Current   0.25A   0.48A   0.72A   0.86A   1.38A   2.3A   2.3A   3A
  Drive Motor   10W/F   25W/F   30W/F   40W/F   90W/F   100W/F   120W/F   140W/F
  Product Weight   3kg   5kg   5.5kg   8kg   8.5kg   15kg   15.5kg   16kg
  Voltage Option   AC 110V, AC 220V, AC 380V, DC 12V, DC 24V
  Insulation Resistance   DC24V:100MΩ/250V; AC110/220V/380V: 100MΩ/500V
  Withstand Voltage   DC24V:500V; AC110/220V:1500V; AC380V:1800V 1Minute
  Protection Class   IP65
  Installation Angle   Any
  Electrical Connection   G1/2 Water-proof Gable Connectors, Electric Power Wire, Signal Wire
  Ambient Temp.   -30℃to 60℃
  Control Circuit
   A: ON/OFF type with light indicator signal feedback
  B: ON/OFF type with passive contact signal feedback
  C: ON/OFF type with resistance potentiometer signal feedback
  D: ON/OFF type with resistance potentiometer and neutral position signal feedback
  E: Regulation type with servo control module
  F: DC24V/DC12V dirct ON/OFF type
  G: AC380V three-phase power supply with passive signal feedback
  H: AC380V three-phase power supply with resistance potentiometer signal feedback
Optional Function   Over Torque protectors, dehumidify heater, stainless steel coupling & yoke
The actuator on my automated valve operates, but the valve won’t turn. Why?

Most likely the valve stem or actuator coupling is broken.

The electric actuator limit switches or the pneumatic actuator position stops are not correctly adjusted.

Probably because there is no air pressure to the solenoid or dirt has jammed it. Also, debris might be trapped inside the valve. Or, the air pressure is not sufficient to operate the actuator. Remember: measure air pressure at the actuator, not at the compressor.

Maybe. First, be sure that the actuator torque output is sufficient to turn the valve reliably. Second, you will have to fabricate a custom mounting bracket and coupling to connect the actuator to the valve.

The valve will stop somewhere between full open and close. When power is reapplied to the original circuit, the actuator will complete the cycle.

To make the change just remove the actuator from the valve and turn it, or the valve stem, 90 degrees and remount the actuator.

Remove the actuator from the valve and check the valve stem. Most ball valves have stem flats at right angles to the flow when the valve is in the off position. On butterfly valves check the stem flow arrow marking.

Remove the actuator from the valve and check the valve stem. Most ball valves have stem flats at right angles to the flow when the valve is in the off position. On butterfly valves check the stem flow arrow marking.

Check the electric wiring schematic that came with the actuator for the correct hookup. Sometimes a copy is inside the actuator cover. If it is missing, don’t guess about the connections. Call the manufacturer for a schematic.

The actuator is wired incorrectly (check the schematic accompanying the actuator), or the external control switch is not the correct type for the actuator.

Not unless you bought it with an optional speed control.

Actuators and solenoid valves require different types of electrical control switches. SPDT for actuators, SPST for solenoids. Check the actuator wiring schematic for the correct wiring and switch type.

Still have confused? Contact Us!
