COVNA HK60-D-P CPVC Series Plastic Electric Butterfly Valve

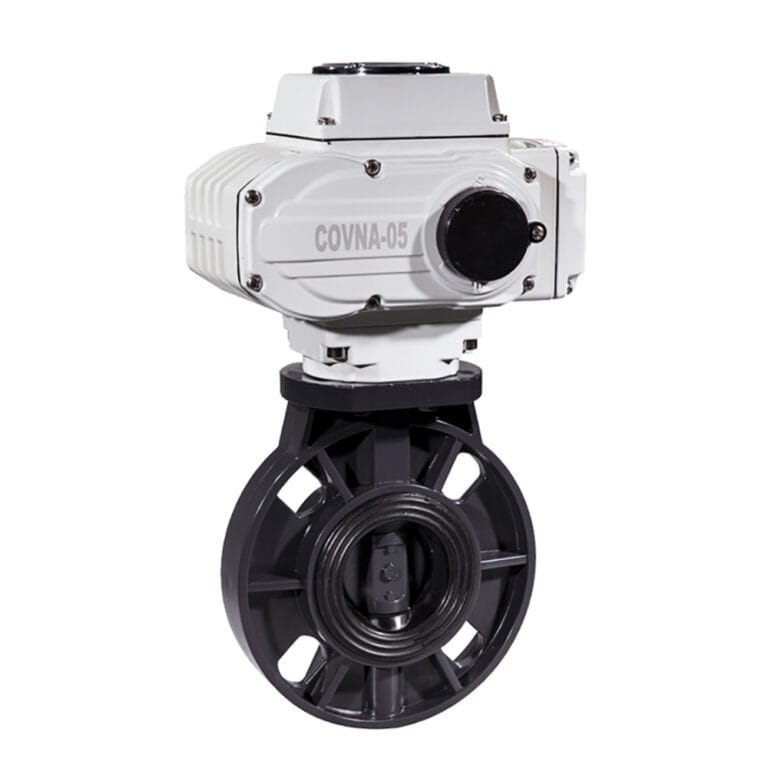

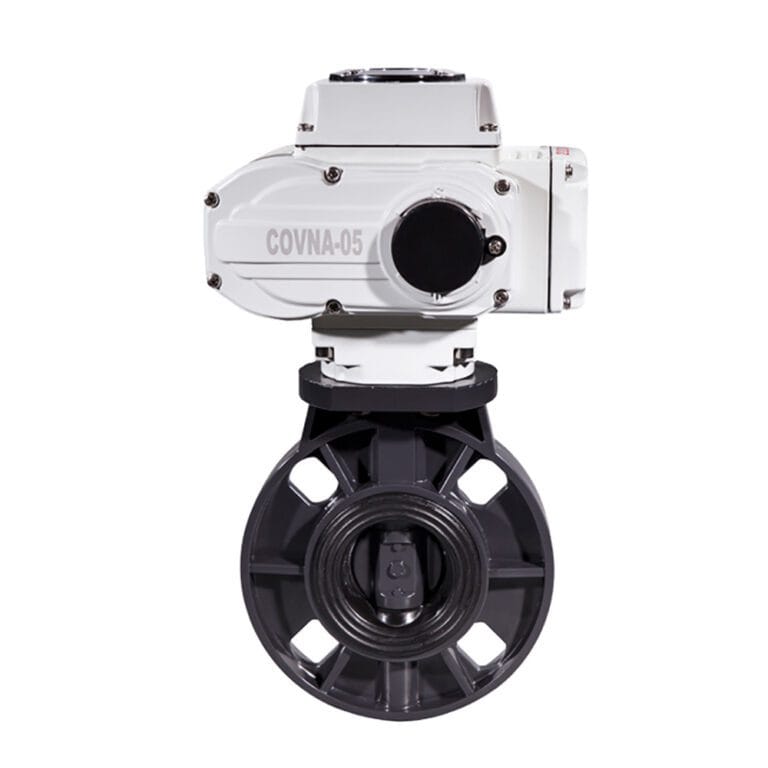

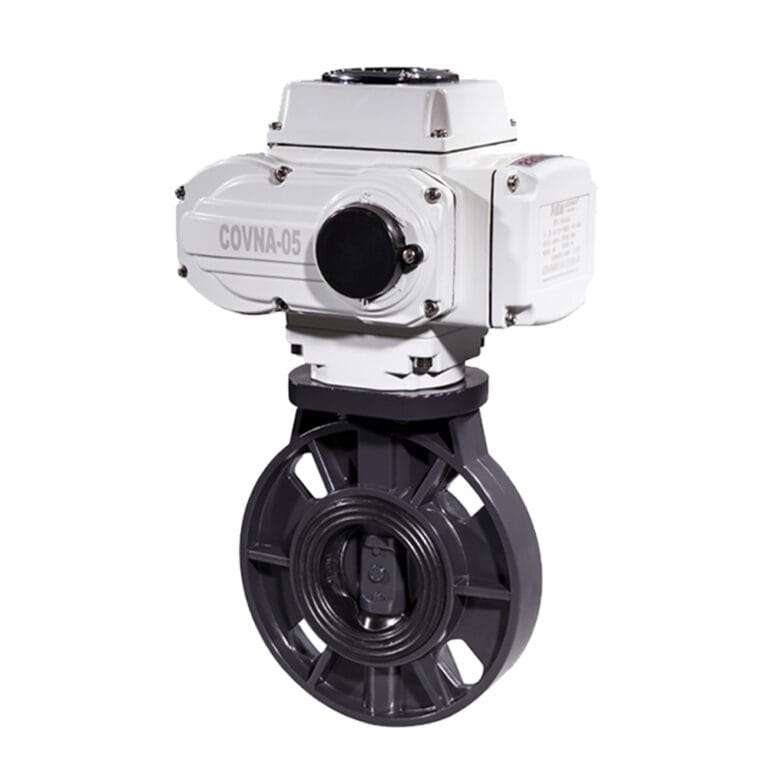

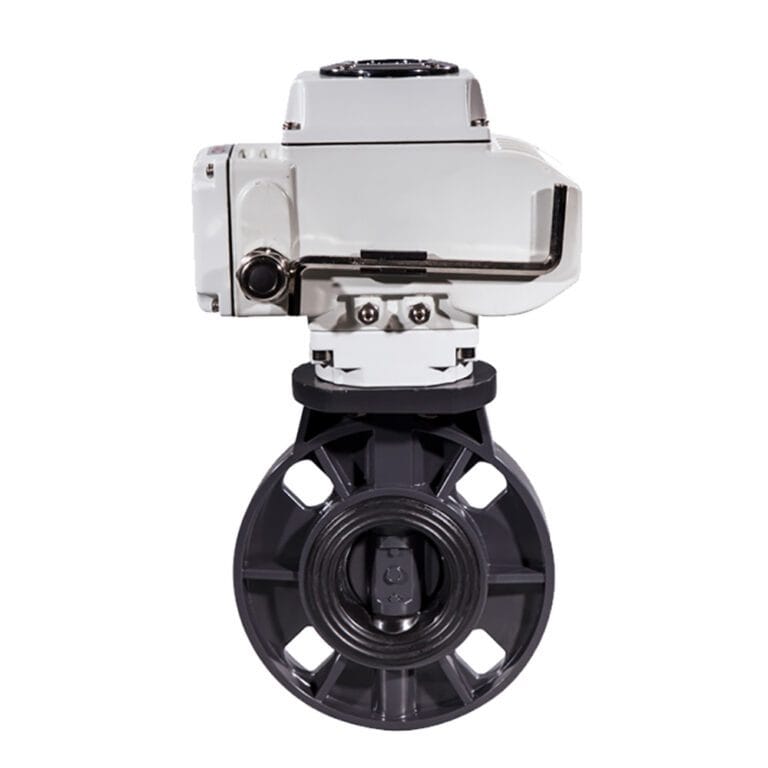

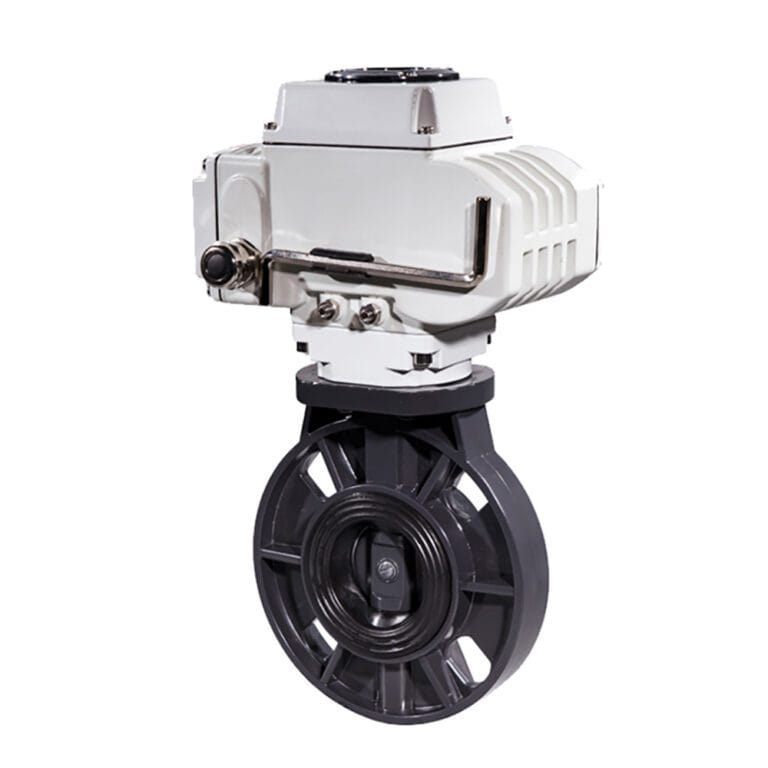

COVNA HK60-D-P CPVC Series Electric Plastic Butterfly Valve

COVNA HK60-D-P electric plastic pvc butterfly valve, standard on/off control, 4-20mA or 0-10VDC modulating control is available, UPVC or PVC body construction, optional CPVC, 220VAC standard voltage, minimum 2 inch lug connection, default NBR seat, suitable for most air, water, light oil, fuels, solvents, alcohol and many acids, EPDM seat is optional. Low Weight, Low Cost, Anti-Corrosive & Food Safe. Easy to operate and with a convenient modular design for gas or liquid piping system.

  Model   HK60-D-P
  Torque Range   50Nm to 4000Nm
  Size Range   2in to 20in (2″, 2-1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″)
  Pressure   10bar
  Max. Temperature   -10℃ to 80℃ (14℉ to 176℉)
  Voltage   DC-12V, 24V; AC-24V, 110V, 220V, 380V
  Medium   Water, wastewater, seawater, and another medium

Contact Us

COVNA Fluorine Lined Plastic Electric Butterfly Valve

● Industrial grade PVC butterfly valve, Polypropylene (PP) disc
● Pressure rated 150psi at 73°F.  EPDM primary liner.
● ANSI 150 wafer-style flange connection
● Suitable for using with potable/drinking water
● Quarter turn operation with mechanical stops
● Actuator Type: ON OFF Type, Regulating Type and Intelligent Type

Technical Parameters of Valve Actuator

  ON/OFF Type   Feedback: the active contact signal, passive contact signal, resistant, 4-20mA
  Regulation Type   Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
  Field Operation   The field, remote control switch regulation and MODBUS, PROFIBUS field bus
  Voltage optional   AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized
  Protection Class   IP65

sdfsdfsdfsdf

  Model   05   10   16   30   60   125   250   400
  Torque Output   50Nm   100Nm   160Nm   300Nm   600Nm   1250Nm   2500Nm   4000Nm



  Series   5   10   16   30   60   125   250   400
  Torque Output   50Nm   100Nm   160Nm   300Nm   600Nm   1250Nm   2500Nm   4000Nm
  90° Cycle Time   20S   15/30S   15/30S   15/30S   30S   100S   100S   100S
  Angle Of Rotation   0-90°   0-90°   0-90°   0-90°   0-90°   0-90°   0-90°   0-90°
  Working Current   0.23A   0.35A   0.4A   0.45A   0.6A   1.03A   1.85A   2.7A
  Drive Motor   50W   75W   80W   100W   130W   210W   285W   360W
  Mounting Standard   ISO5211 direct mounting
  Voltage Options   DC12V, DC24V, AC24V, AC110V, AC220V, AC380V
  Input Signal   4-20mA, 1-5VDC, 0-10VDC
  Output Signal   4-20mA, 1-5VDC, 0-10VDC
  Protection Class   IP65 protection class
  Ambient Temp   -20 to +60°C
  Wiring Diagram   A: ON/OFF type with light indicator signal feedback
  B: ON/OFF type with passive contact signal feedback
  C: ON/OFF type with resisance potentiometer signal feedback
  D: ON/OFF type with resistance potentiometer and neutral posistion signal feedback
  E: Regulation type with servo control module
  F: DC24/DC12V direct ON/OFF type
  G: AC380V 3-phase power supply with passive signal feedback
  H: AC380V 3-phase power supply with resistance potentiometer and neutral posistion signal feedback

Technical Parameters of Valve Body

  Medium   Air, water, oil, etc   Port size   2″, 2.5″, 3″, 4″, 5″, 6″, 8″, 10″, 12″
  Structure   Midline structure A type   Voltage   DC-12V, 24V; AC-24V, 110V, 220V, 380V
  Port Thread   Wafer   Voltage Tolerance   ±10%
  Body Material   UPVC   Working Pressure   10 / 16 bar (145 / 232 psi)
  Suitable Media   Water, Oil, Air, Gas, etc   Temperature Of Media   -5 to 80℃ (23℉ to 176℉)



Technical Parameters of Valve Actuator :

  On/Off Type
   90 degree rotation. Feedback: The Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA
  Modulating Type
   Adjust open/close angle from 0 to 90 degree. AC/DC power supply, signal control and manual override. High torque up to 4000Nm.
  Intelligent Type    Adjust open/close angle from 0 to 90 degree. LED display screen to allow you check the open/close angle easier. AC/DC power
supply,signal control and manual override. High torque up to 4000Nm.
  Field Operation
   The Field, Remote Control Switch Regulation And MODBUS, PROFIBUS Field Bus
  Voltage Optional
   AC-110V, 220V, 380V, DC-12V, 24V, Special Voltage Can Be Customized
  Protection Class
   IP65; Explosion Proof Construction Are Available: EX d II BT4

sdfsdf

sdfsdf
Technical Parameter of Valve Body:

  Nominal Size   DN15-DN200   Body Material   PVC, UPV, CPVC, PVDF and PPH
  End Connection   True Union, Double Union Thread   Structure   T Port / L Port
  Operating Pressure   1.0 / 1.6 MPa (10 / 16 bar)   Voltage Tolerance   ±10%
  Suitable Media   Corrosive media, Water, Air, etc   Temperature Of Media   -5~80℃ (23℉~176℉)
  Design standard   ISO, DIN, IDF, SMS, 3A   Orifice(mm)  15, 20, 25, 32, 40, 50, 65, 80, 100

sdfsdf

Package & Shipping:
As a professional electric ball valve manufacturer, COVNA aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service with omprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.
sdfsdf

Company Profile:
sdfsdf
sdfsdf

Factory Profile:
sdfsdf

Company Certificates:
sdfsdf

Purchase Guide:

● Confirm the valve size you need. We offer this electric butterfly valve in 2in to 12in
● Confirm the valve body material you need. We offer this electric butterfly valve in UPVC, CPVC and PVDF material
● Confirm the pressure and working temperature. Pressure and temperature are the important points and those may affect the cost
● Confirm the voltage you need. The right voltage could help your valve operate better
● Tell us your medium. Different medium has different features and we will help you to select the valve basic on the medium requirements
● Confirm the actuator type you need. We have On/off type, modulating type, intelligent type, explosion-proof type or IP68 type electric valve actuator for your project
● Any requirements please tell us like disc material, sealing material, or connection standard. We could help you to custom the valve you need

More infomation, please send message to us. Quote will be provided within 2 hours! [email protected]

Technical Parameter of Actuators:
sdfsdf

  Model   5   10   16   30   60   125   250   400
  Torque Output   50Nm   100Nm   160Nm   300Nm   600Nm   1250Nm   2500Nm   4000Nm
  90°Cycle Time   20s/60s   15s/30s/60s   15s/30s   15s/30s   30s/60s   100s   100s   100s
  Angle of Rotation   0-90°   0-90°   0-90°   0-90°   0-90°   0-90°   0-90°   0-90°
  Working Current   0.25A   0.48A   0.68A   0.8A   1.2A   2A   2A   2.7A
  Starting Current   0.25A   0.48A   0.72A   0.86A   1.38A   2.3A   2.3A   3A
  Drive Motor   10W/F   25W/F   30W/F   40W/F   90W/F   100W/F   120W/F   140W/F
  Product Weight   3kg   5kg   5.5kg   8kg   8.5kg   15kg   15.5kg   16kg
  Voltage Option   AC 110V, AC 220V, AC 380V, DC 12V, DC 24V
  Insulation Resistance   DC24V:100MΩ/250V; AC110/220V/380V: 100MΩ/500V
  Withstand Voltage   DC24V:500V; AC110/220V:1500V; AC380V:1800V 1Minute
  Protection Class   IP65
  Installation Angle   Any
  Electrical Connection   G1/2 Water-proof Gable Connectors, Electric Power Wire, Signal Wire
  Ambient Temp.   -30℃to 60℃
  Control Circuit
   A: ON/OFF type with light indicator signal feedback
  B: ON/OFF type with passive contact signal feedback
  C: ON/OFF type with resistance potentiometer signal feedback
  D: ON/OFF type with resistance potentiometer and neutral position signal feedback
  E: Regulation type with servo control module
  F: DC24V/DC12V dirct ON/OFF type
  G: AC380V three-phase power supply with passive signal feedback
  H: AC380V three-phase power supply with resistance potentiometer signal feedback
Optional Function   Over Torque protectors, dehumidify heater, stainless steel coupling & yoke
The actuator on my automated valve operates, but the valve won’t turn. Why?

Most likely the valve stem or actuator coupling is broken.

The electric actuator limit switches or the pneumatic actuator position stops are not correctly adjusted.

Probably because there is no air pressure to the solenoid or dirt has jammed it. Also, debris might be trapped inside the valve. Or, the air pressure is not sufficient to operate the actuator. Remember: measure air pressure at the actuator, not at the compressor.

Maybe. First, be sure that the actuator torque output is sufficient to turn the valve reliably. Second, you will have to fabricate a custom mounting bracket and coupling to connect the actuator to the valve.

The valve will stop somewhere between full open and close. When power is reapplied to the original circuit, the actuator will complete the cycle.

To make the change just remove the actuator from the valve and turn it, or the valve stem, 90 degrees and remount the actuator.

Remove the actuator from the valve and check the valve stem. Most ball valves have stem flats at right angles to the flow when the valve is in the off position. On butterfly valves check the stem flow arrow marking.

Remove the actuator from the valve and check the valve stem. Most ball valves have stem flats at right angles to the flow when the valve is in the off position. On butterfly valves check the stem flow arrow marking.

Check the electric wiring schematic that came with the actuator for the correct hookup. Sometimes a copy is inside the actuator cover. If it is missing, don’t guess about the connections. Call the manufacturer for a schematic.

The actuator is wired incorrectly (check the schematic accompanying the actuator), or the external control switch is not the correct type for the actuator.

Not unless you bought it with an optional speed control.

Actuators and solenoid valves require different types of electrical control switches. SPDT for actuators, SPST for solenoids. Check the actuator wiring schematic for the correct wiring and switch type.

Still have confused? Contact Us!
