As the food processing, pharmaceutical and water treatment industries continue to improve their hygiene standards and quality requirements, the industrial valve market has an increasingly urgent need for products with high reliability, excellent sealing and easy cleaning and maintenance.

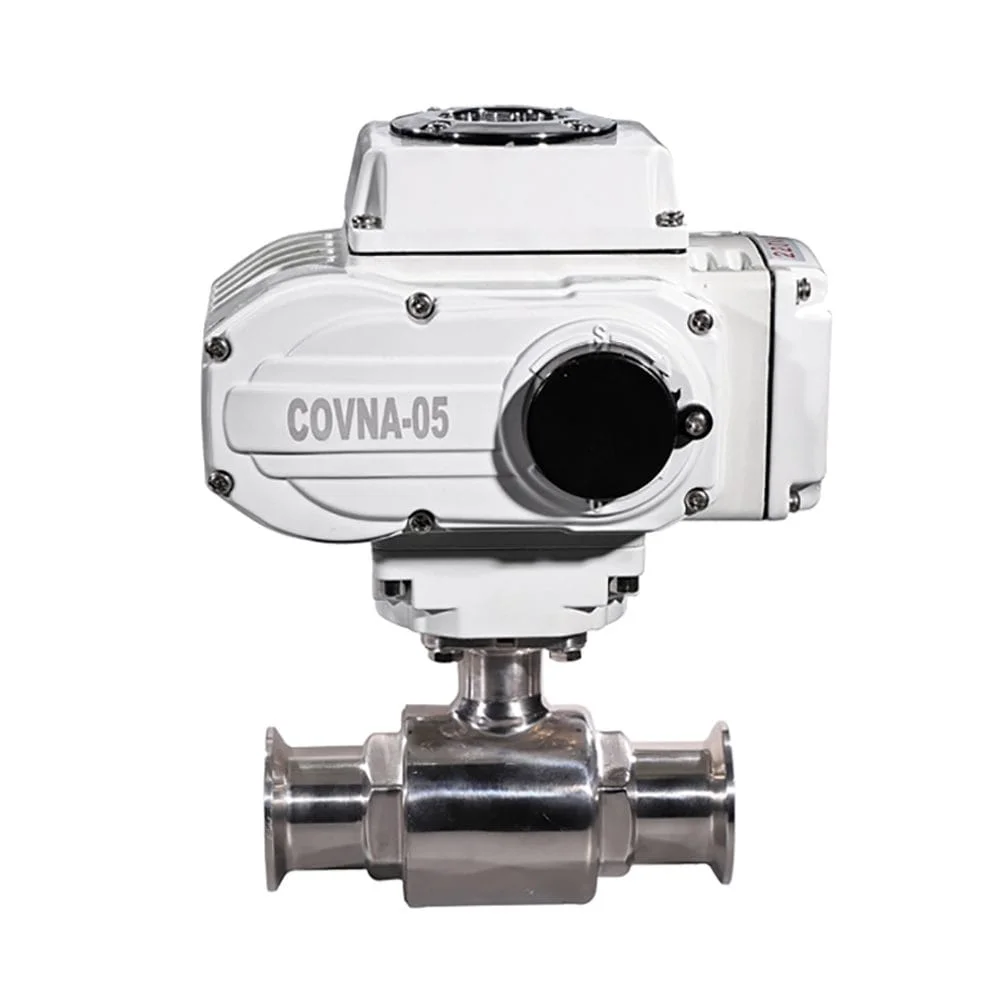

COVNA HK60-Q-W electric ball valve adopts advanced design concepts and is designed for food-grade and sanitary environments. Based on a compact structural design and combined with a three-clamp quick connection method, this product achieves efficient disassembly and cleaning, and is an ideal choice for media control such as food, dairy products, and purified water.

Design and material advantages

1. High-quality stainless steel structure
Ensure that the product can maintain excellent performance even in harsh environments. The use of 304 or 316 stainless steel as the valve body material not only ensures corrosion resistance, but also extends service life.

2. Sanitary and safe three-clamp connection
Adopting the internationally accepted three-clamp quick connection method, the product is not only easy to disassemble and clean, but also effectively reduces the risk of cross contamination.

3. Flexible control mode and diverse voltage selection
Not only supports standard on/off control, but also can realize modulating operation, and its rotation control stroke is 90 degrees (quarter turn). The product provides a variety of voltage options, including DC 12V, 24V and AC 24V, 110V, 220V, 380V, etc., to further adapt to the working environment of various control systems.

Technical parameters and application areas

Valve size and pressure range

The product covers a range from 1/2 inch to 4 inches in size, and the working pressure is usually between 1.6 and 6.4MPa, which can meet the application requirements from low pressure to high pressure environment.

Wide range of applicable media
In addition to food, dairy products and drinking water, the valve is also suitable for air, pure water and even other corrosive or high-viscosity fluids, showing extremely high versatility and reliability .

COVNA can also customize materials and laser engrave corporate LOGO according to customer needs to provide customers with personalized solutions.

COVNA adopts a strict quality management system in the production process, and through precision testing and multiple pressure and air tightness tests, ensures that the products meet or even exceed the requirements of international standards such as GB, ANSI and API 598. With a 99.8% product qualification rate and a 5-year quality assurance, HK60-Q-W has won wide recognition and trust in the market.
